| 產地 | 廣東 | 是否進口 | 否 | 訂貨號 | 20160422 |

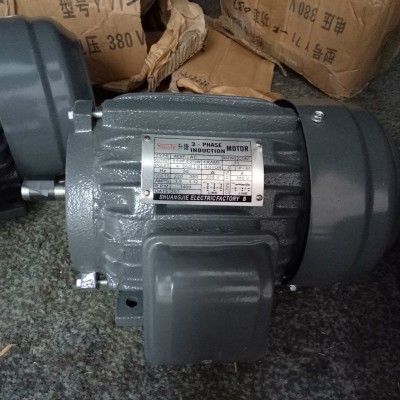

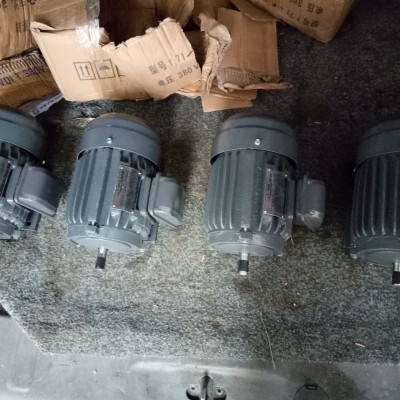

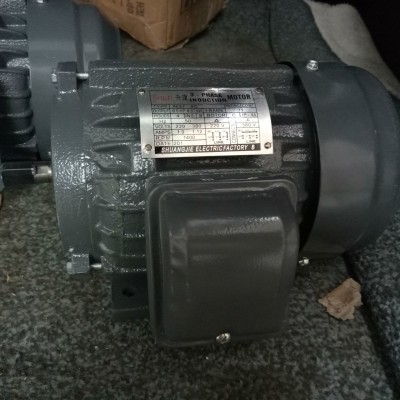

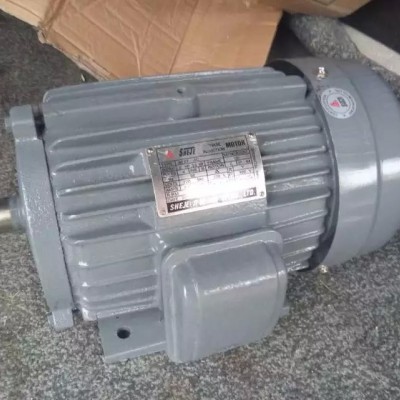

| 品牌 | 升捷 | 產品類型 | 三相異步電動機 | 型號 | 0.37KW 4P |
| 極數 | 4極 | 額定功率 | 0.37KW | 額定電壓 | 220V/380（V） |
| 額定轉速 | 1400（rpm） | 產品認證 | CCC | 應用范圍 | 機械設備 |
| 功率 | 滿載 轉速 RPM | 機座號 | 滿載轉速 | 轉矩 | 最大 轉矩 %FLT | 轉子 慣量 Kg-M2 | |||||
| HP | KW | 轉矩 | 效率 (%) | 功率 因數 (%) | 電流 (A) | 起動 | 電流 (A) | ||||
| 1/4 | 0.185 (0.2) | 2740 1345 910 | 63 63 71 | 0.07 0.13 0.20 | 56.0 60.5 60.0 | 76.5 69.5 60.0 | 0.66 0.67 0.79 | 400 270 200 | 3.5 3.5 3.5 | 300 250 250 | 0.002 0.003 0.006 |
| 1/2 | 0.37 | 2785 1370 925 | 71 71 80 | 0.13 0.26 0.39 | 75.0 65.5 63.0 | 85.0 70.0 67.0 | 0.89 1.24 1.34 | 320 200 200 | 7.0 7.0 7.0 | 280 230 230 | 0.0025 0.005 0.009 |
| 1 | 0.75 | 2800 1400 930 | 80 80 90L | 0.26 0.52 0.78 | 76.5 72.0 71.0 | 87.0 74.0 70.0 | 1.70 2.13 2.28 | 220 230 190 | 11 11 11 | 280 280 230 | 0.005 0.009 0.018 |
| 2 | 1.5 | 2820 1400 935 | 90L 90L 100L | 0.51 | 80.0 75.5 75.5 | 88.0 78.5 71.5 | 3.22 3.82 4.20 | 250 220 180 | 23 23 23 | 280 280 220 | 0.011 0.018 0.033 |
| 3 | 2.2 | 2850 1430 950 | 90L 100L 112M | 0.76 1.52 2.29 | 83.5 80.0 78.0 | 88.5 82.0 76.0 | 4.60 5.18 5.73 | 250 210 180 | 39 39 39 | 280 260 230 | 0.015 0.033 0.060 |
| 5 | 3.7 | 2875 1440 960 | 112M 112M 132S | 1.26 2.52 3.78 | 85.5 84.5 80.5 | 90.0 83.5 75.5 | 7.36 8.03 9.32 | 240 220 180 | 63 63 63 | 280 260 230 | 0.039 0.060 0.154 |
| 7.5 | 5.5 | 2900 1450 960 | 132S 132S 132M | 1.88 3.75 5.67 | 86.5 86.0 84.5 | 88.5 82.5 77.5 | 11.1 12.0 13.0 | 210 220 200 | 93 93 93 | 260 250 230 | 0.066 0.106 0.222 |
| 10 | 7.5 | 2900 1450 970 | 132S 132M 160M | 2.50 5.00 7.48 | 88.5 87.5 85.5 | 88.5 85.5 80.0 | 14.5 15.2 16.6 | 200 220 210 | 116 116 116 | 210 250 230 | 0.078 0.146 0.408 |
| 15 | 11 | 2930 1460 970 | 160M 160M 160L | 3.72 7.46 11.20 | 88.5 89.5 88.5 | 90.0 88.0 84.0 | 21.3 21.6 22.9 | 200 220 210 | 168 168 168 | 240 250 230 | 0.164 0.322 0.599 |
| 20 | 15 | 2930 1460 970 | 160M 160L 180M | 4.95 9.94 15.00 | 90.0 90.0 89.0 | 91.0 88.5 82.5 | 27.7 28.3 30.9 | 200 220 200 | 209 209 209 | 240 240 210 | 0.191 0.389 1.007 |
| 25 | 18.5 | 2915 1460 970 | 160L 180M 180L | 6.23 12.40 18.70 | 90.0 91.0 90.0 | 89.5 86.5 82.5 | 35.2 36.0 38.2 | 200 210 200 | 268 268 268 | 230 240 210 | 0.247 0.624 1.170 |
| 30 | 22 | 2950 1455 970 | 180M 180M 180L | 7.38 15.00 22.40 | 91.5 91.5 89.5 | 90.0 85.0 82.0 | 41.3 43.9 46.3 | 200 210 200 | 319 319 319 | 230 240 210 | 0.315 0.671 1.365 |
| 40 | 30 | 2935 1455 970 | 180L 180L 200L | 9.89 20.00 29.90 | 92.0 91.0 91.0 | 91.0 85.0 83.0 | 54.2 58.6 60.0 | 180 180 190 | 398 398 398 | 210 220 200 | 0.373 0.829 1.952 |
| 50 | 37 | 2950 1460 970 | 200L 200L 200L | 12.30 24.90 37.40 | 91.5 91.5 90.0 | 87.5 86.0 80.0 | 70.8 72.0 78.7 | 150 190 190 | 463 463 463 | 210 210 200 | 0.543 1.293 2.292 |
| 60 | 45 | 2950 1460 980 | 200L 200L 225S | 14.80 29.80 44.40 | 92.5 92.0 91.0 | 87.0 88.5 80.0 | 84.5 83.5 93.4 | 140 190 170 | 582 582 582 | 200 200 200 | 0.659 1.681 3.201 |
| 75 | 55 | 2950 1470 | 225S 225S | 18.50 37.00 | 92.5 92.5 | 90.5 85.0 | 102 108 | 140 180 | 725 725 | 210 200 | 1.234 1.947 |
